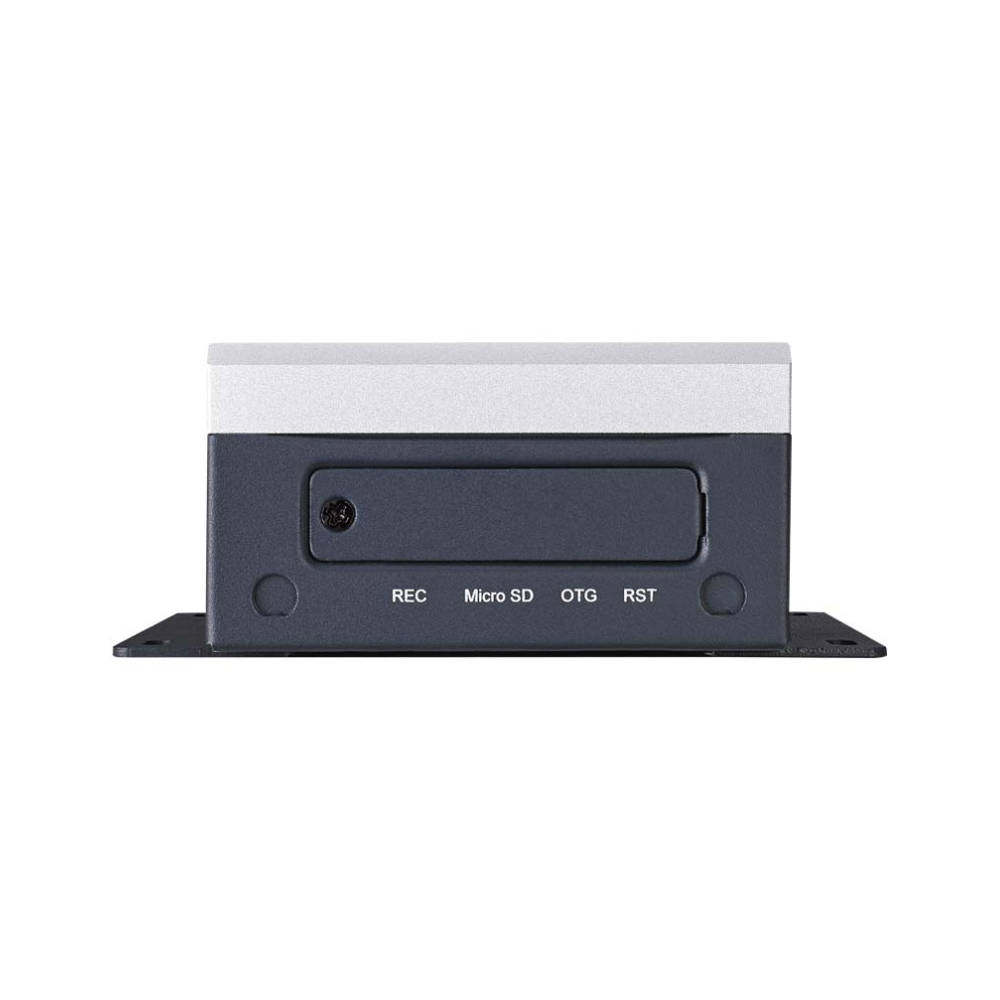

Advantech MIC-710AILX front

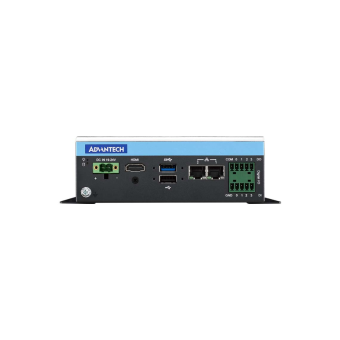

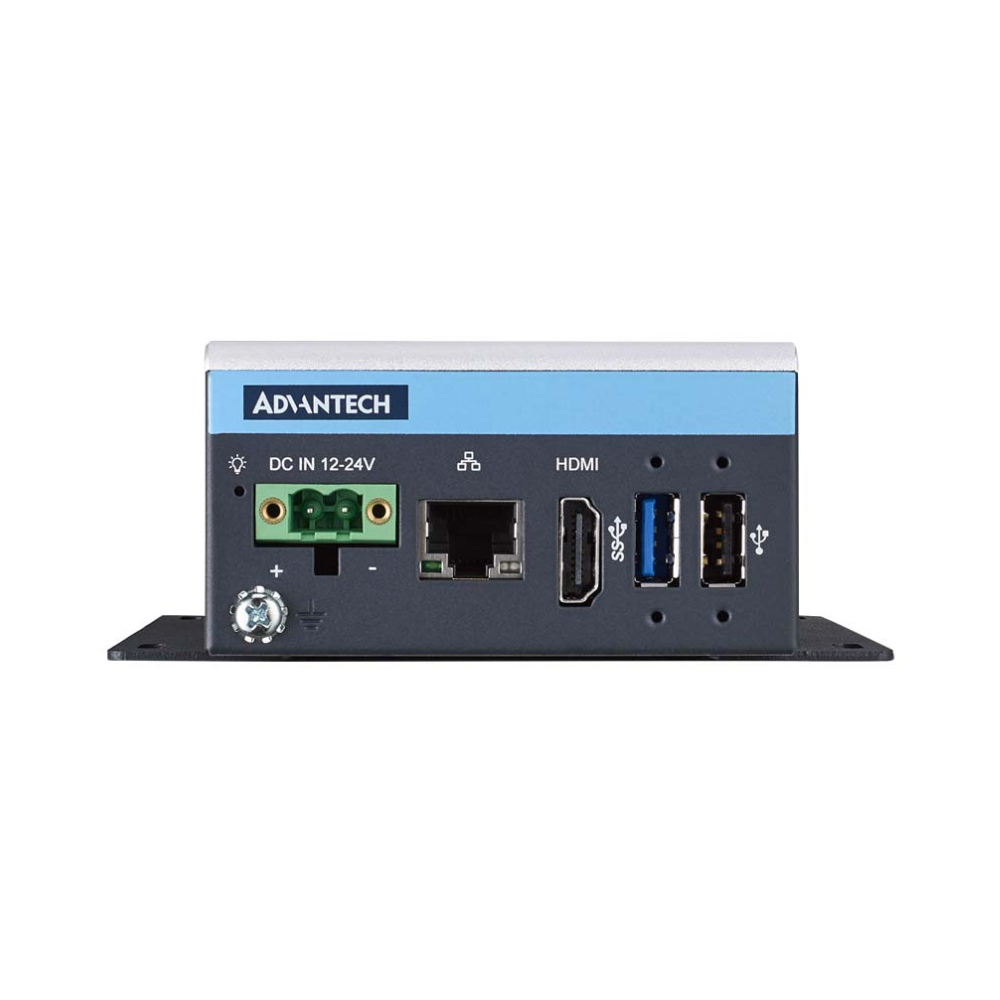

Advantech MIC-710AILX rear
Advantech MIC-710AILX
Advantech MIC-710AILX front
Advantech MIC-710AILX rear

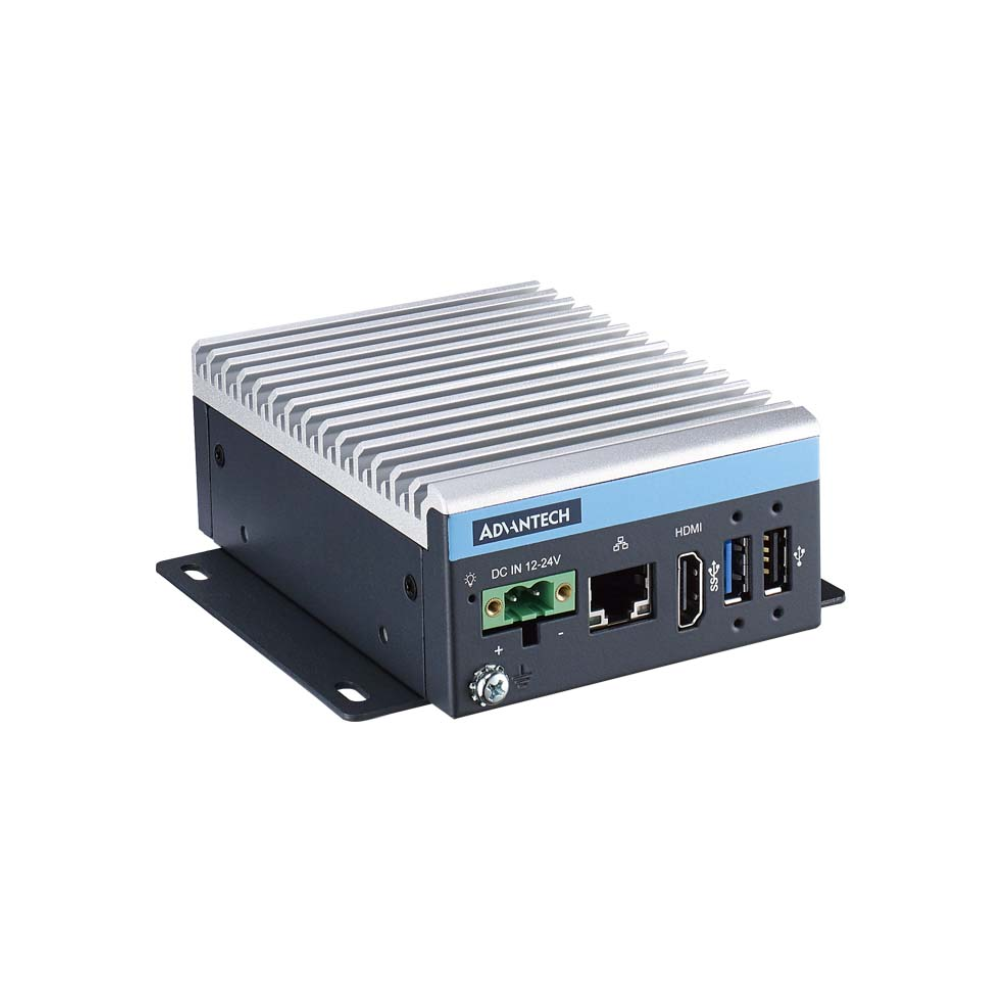

Advantech MIC-710AILX Nvidia Jetson Xavier NX

Item No.: Advantech MIC-710AILX-00B1
Advantech

MIC-710AILX Nvidia Jetson Xavier NX

MIC-710AILX AI Machine Vision System Based on Nvidia Jetson Xavier NX.

MIC-710AILX:
- Compact fanless design
- NVIDIA® Jetson Xavier™ NX up to 21 TOPS embedded
- Linux OS with board support package (BSP)
- Supports 1 x GbE, 1 x USB 3.2 Gen 1 (5 Gbit/s)
- Supports 1 x mPCIe, 1 x M.2 2280
- Supports 24/7 secure remote monitoring, control, and OTA deployment powered by Allxon

Full technical specifications: Click here to download



€981,00
(Price excluding VAT)
Request a quotation?
Brand
Advantech
CPU
Arm Carmel v8.2 64-bit
System memory
8GB LPDDR4
Operating system
Ubuntu 18.04
Fan
None

Technical Information

- CPU: 6-core NVIDIA Carmel Arm® v8.2 64-bit

- GPU: 384-core NVIDIA Volta™ GPU with 48 Tensor Cores

- Memory: 8GB LPDDR4

- Flash: 16G of eMMC

- Ethernet: 1 x 10/100/1000 Mbps

- USB: 1 x USB3.2, 1x USB2.0, 1x internal USB 2.0 (Pin header)

- Video output: HDMI (Max. resolution 3840 x 2160 @60Hz)

- Voltage: 19 ~ 24V (1.5A-1.18A)

- Operation temp: 0 ~ 60 °C

- Ubuntu with JetPack

Recommended products for Advantech MIC-710AILX Nvidia Jetson Xavier NX

IDS-U3-3130CP-C-HQ front sensor IDS-U3-3130CP-C-HQ NOIP1SE0500A-QDI

IDS U3-3130CP-C-HQ Rev.2.2
Price on request

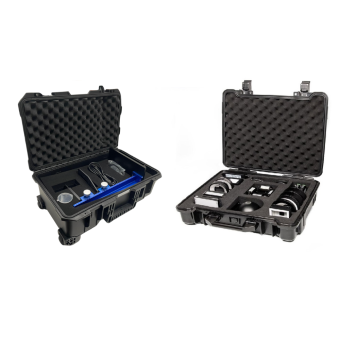

COMBI DK-AD-LIGHTING-V3-PT & TME-DK-MVM2-HD-V1

COMBI DK-AD-LIGHTING-V3-PT & TME-DK-MVM2-HD-V1
Price on request
IDS U3-36L0XC-C IDS U3-36L0XC-C rear

IDS U3-36L0XC-C
Price on request

Alternate products for Advantech MIC-710AILX Nvidia Jetson Xavier NX

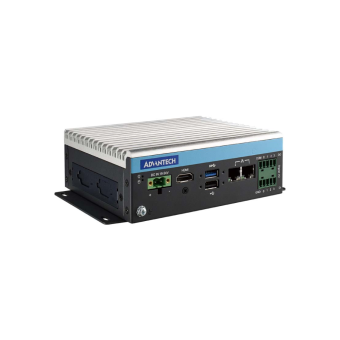

Advantech MIC-710AIX Advantech MIC-710AIX-front
