Item No.: 167.2310
TMS Lite

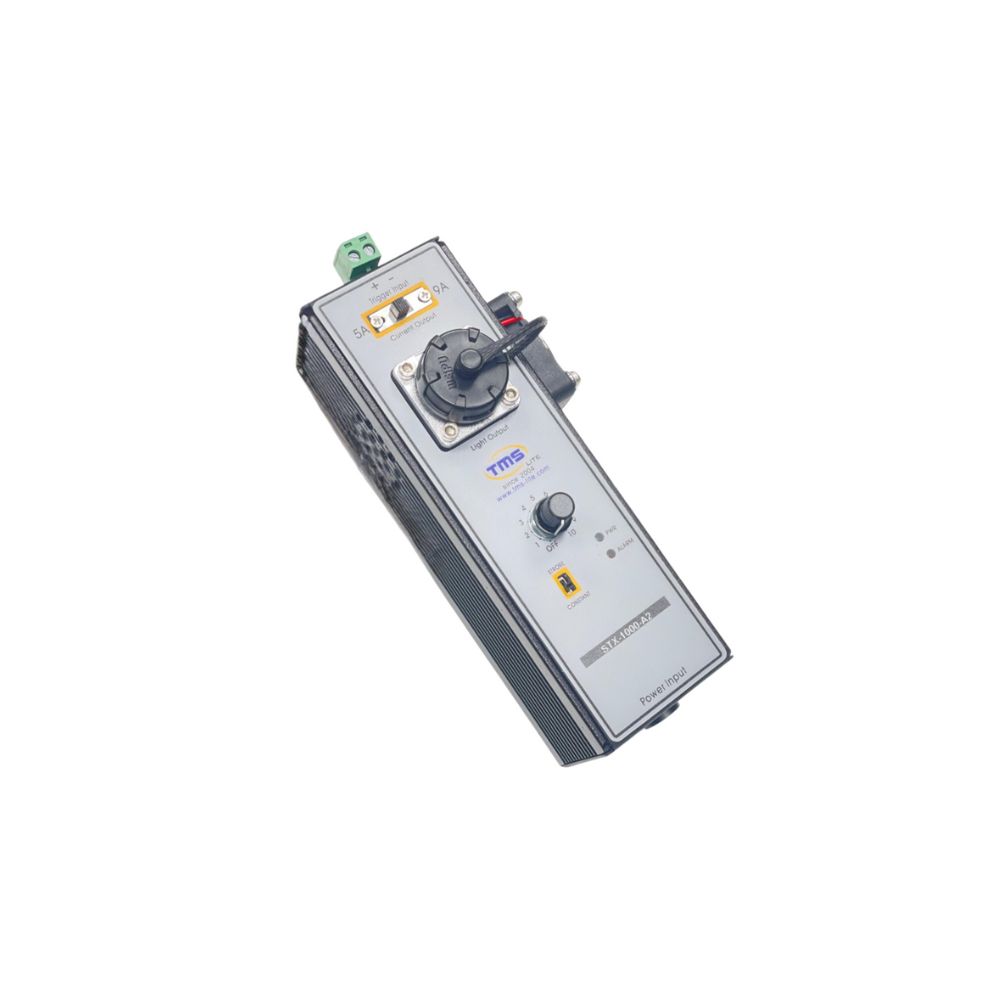

STX SERIES Machine Vision Analog Light Controller

STX SERIES - Light controller

The STX series controller is a single channel output controller for lighting. The STX series has a VR adjustable knob to control the lighting intensity.

You can choose between a high current output of 5A or 9A, and you have the option to switch between strobe mode or constant mode.

User manual: Click here to download

€520,00
(Price excluding VAT)
Request a quotation?
Output voltage
24V
Input voltage
24V
Strobe (triggering)
Yes
Overstrobe
No
Channels
1
Controller type
Analog
Series
STX
Brand
TMS Lite

Specifiaction

- Intensity: VR analog control (Adjustable)

- Operation mode: Constant & Strobe

- Externel control: None

- Channels: 1

- Connector: Terminal

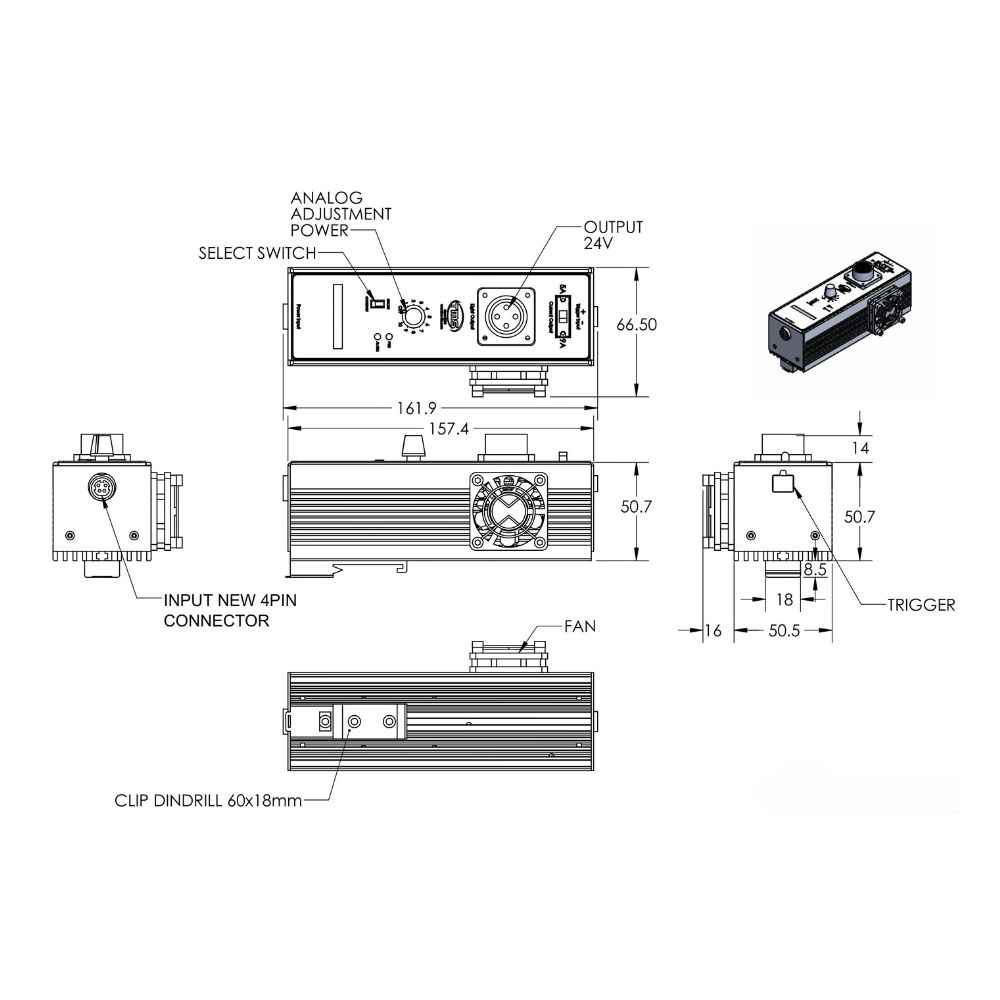

- Dimensions: 162 x 67 x 73 mm

Technical information

- Input voltage: 24V DC

- Output voltage / current: 24V, 5A or 9A
