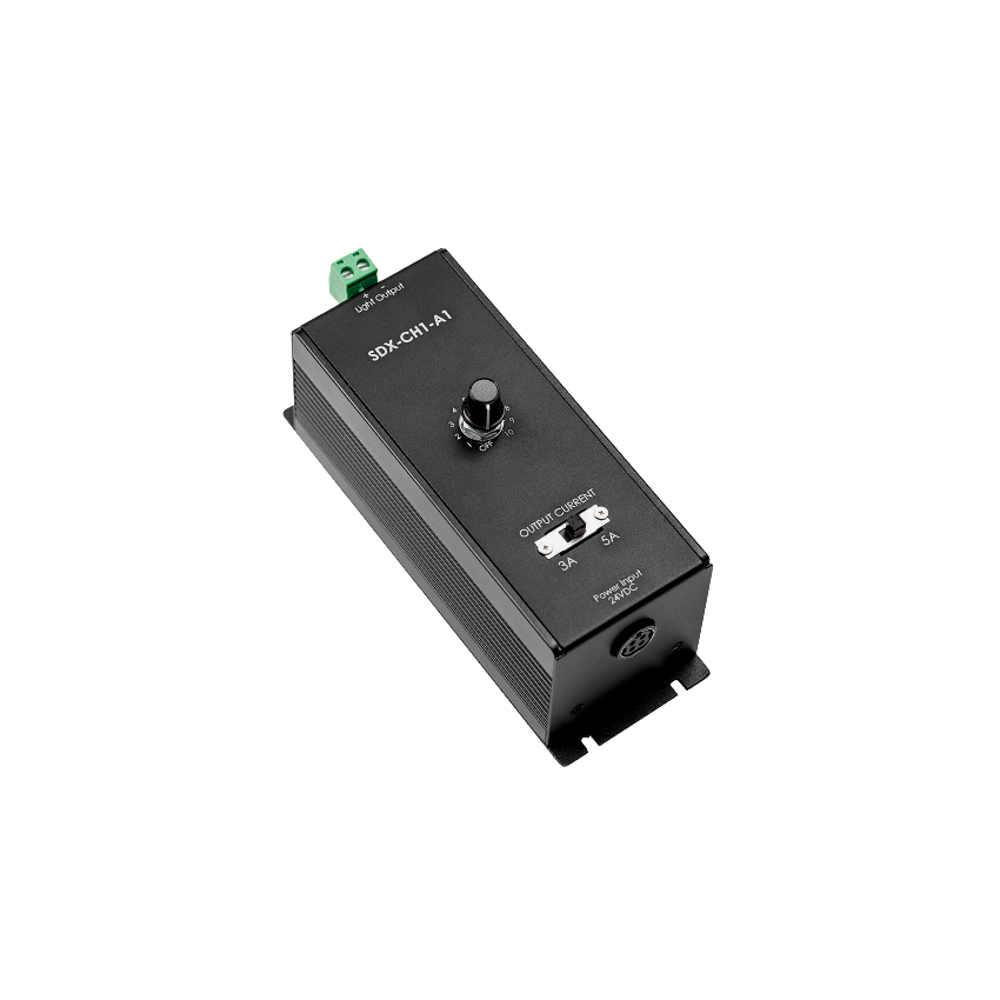

SDX-CH1-A1

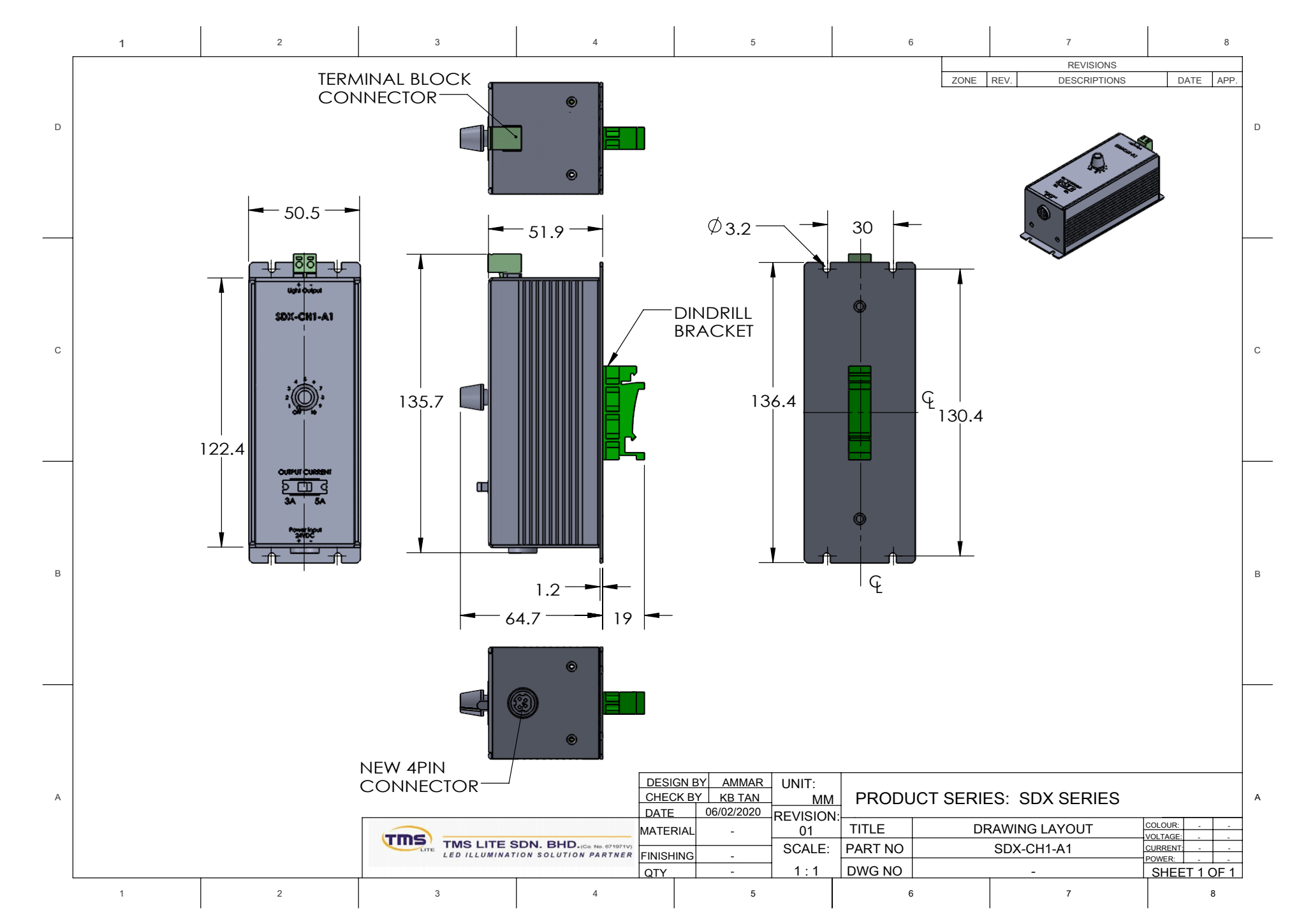

SDX-CH1-A1 drawing
SDX-CH1-A1
SDX-CH1-A1 drawing

SDX-CH1-A1

Item No.: 167.1988
TMS Lite

Machine Vision analog Light Controller

SDX SERIES light controller

The SDX series controller is a single channel output controller for lighting. The SDX controller has a VR adjustable knob to control the lighting intensity.

User manual: Click here to download

€301,00
(Price excluding VAT)
Request a quotation?
EAN
7435856162177
Output voltage
24V
Input voltage
24V
Strobe (triggering)
No
Channels
1
Controller type
Analog
Series
SDX

Specification

- Intensity: VR analog control (Adjustable)

- Operation mode: Constant

- Externel control: None

- Channels : 1

- Connector: Terminal

- Dimensions: 136.4 x 50.5 x 83.7 mm

Technical information

- Input voltage: 24VDC

- Output voltage / current: 24V, Max 5A


Recommended products for SDX-CH1-A1

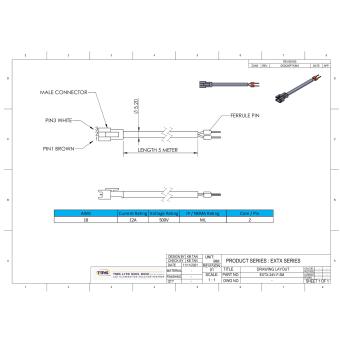

EXTX-24V-F-5M drawing

EXTX-24V-F-5M
Price on request
EXTX-24V-F-3M drawing

EXTX-24V-F-3M
Price on request

Alternate products for SDX-CH1-A1

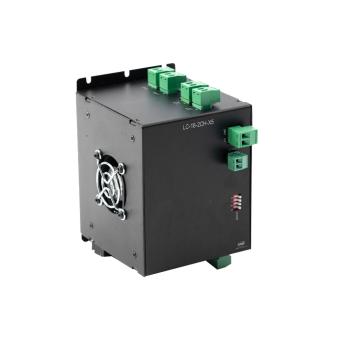

LC-18-2CH-X5

LC-18-2CH-X5
Price on request

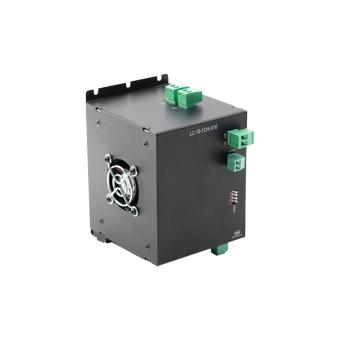

LC-18-1CH-X10
