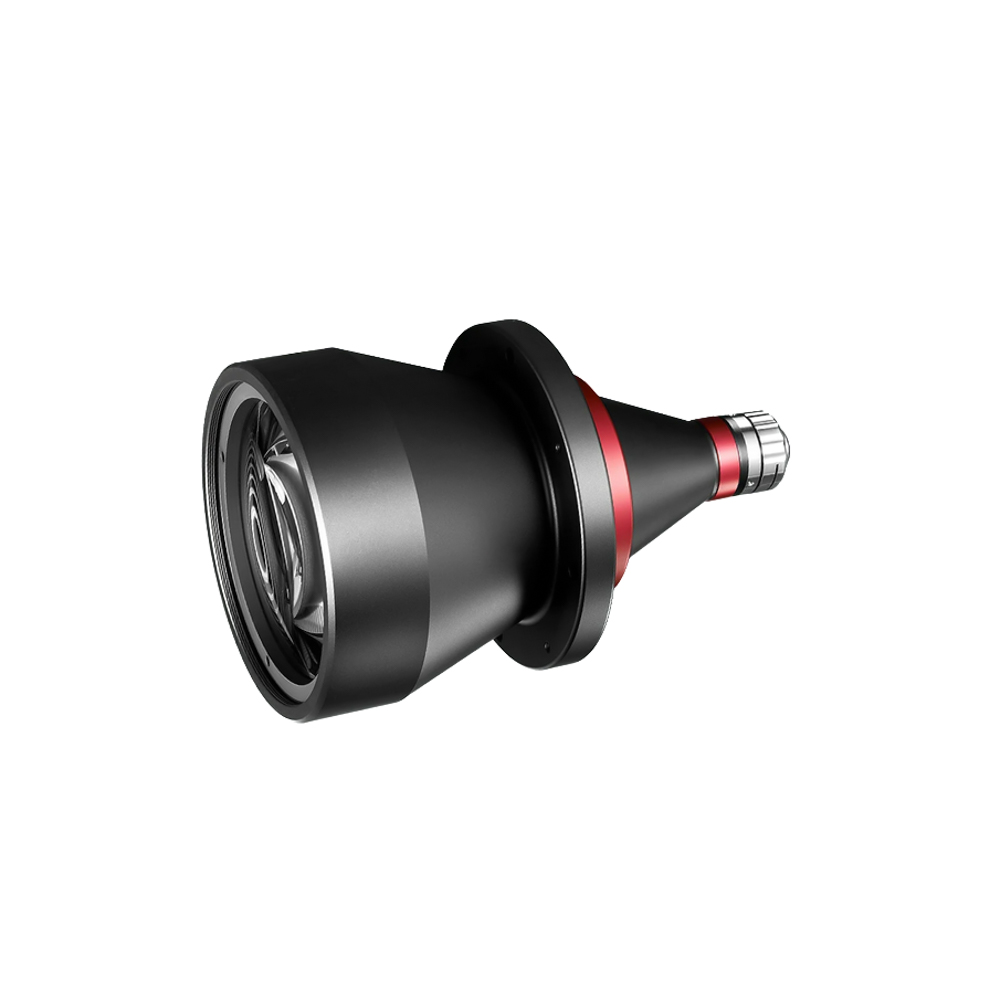

Coolens DTCM118-150 front view

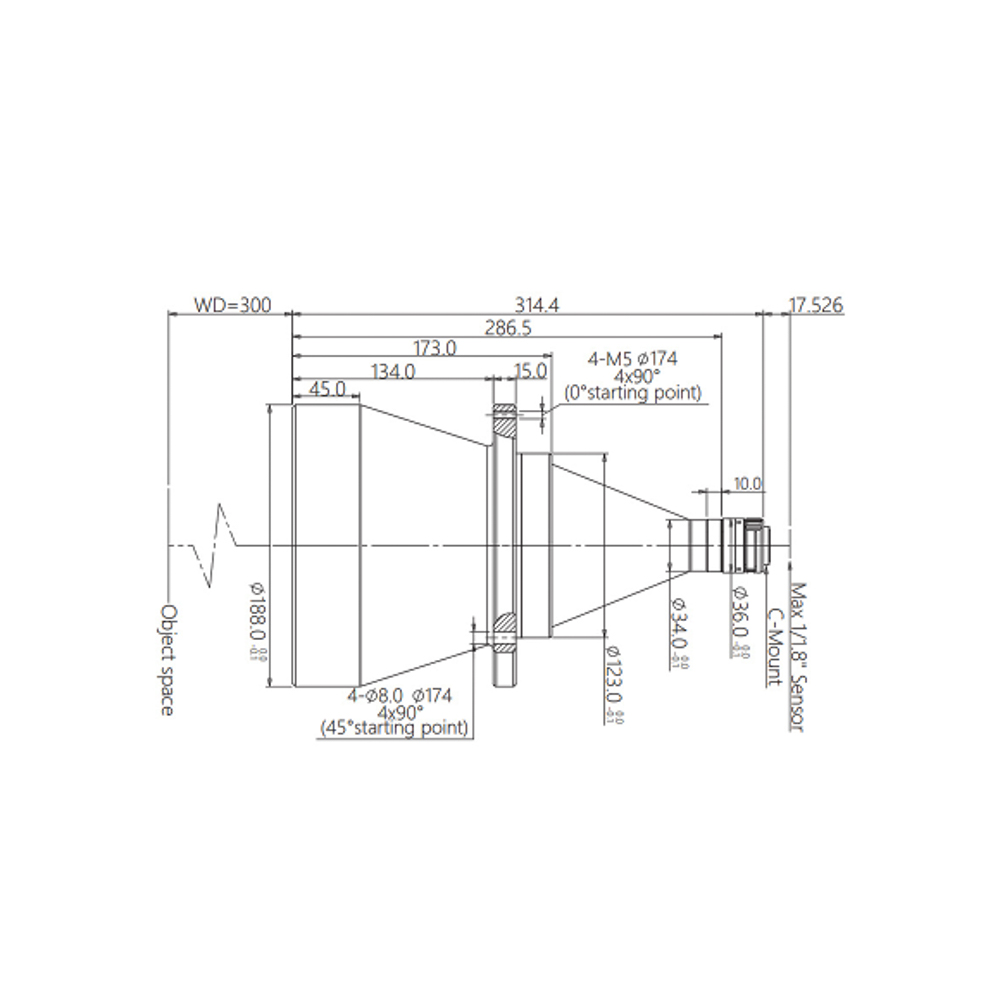

Coolens DTCM118-150 drawing
Coolens DTCM118-150 front view
Coolens DTCM118-150 drawing

DTCM118-150-AL

Item No.: 238.0058
Coolens

DTCM118-150-AL

Coolens DTCM118-150-AL - C-Mount Bi-Telecentric Lens

• FOV ⌀ 150mm, Ultra Resolution Bi-Telecentric Lens

• Up to 6 MegaPixels, 2.4 μm Pixel Size Sensors

• 1/1.8″ Bi-Telecentric Lens, C-Mount

• Magnification (x) 0.060

Also available in bigger FOV's:

  • DTCM118-170-AL - FOV ⌀ 170mm
  • DTCM118-190H-AL- FOV ⌀ 190mm
  • DTCM118-216-AL- FOV ⌀ 216mm
  • DTCM118-240H-AL- FOV ⌀ 240mm
  • DTCM118-258-AL- FOV ⌀ 258mm
  • DTCM118-300-AL- FOV ⌀ 300mm

Prices on request.

€2.385,00
(Price excluding VAT)
Request a quotation?
EAN
7435844044058
Brand
Coolens
FNO
F 4.6
Sensor Type
1/1.8 Inch
Mount
C-mount
Megapixel
6MP
Series
Telecentric
FOV
150 mm

Specification

FOV: 150 mm ⌀

Max Sensor Size: 9.0 mm (1/1.8")

Typical Telecntricity: <0.1

MTF30: >200 lp/mm

I/O length: 632 +/- 5 mm

Dept of Field: +/- 122 (@F11)

Length: 314.4 mm

Magnification: (x) 0.060

Working Distance: 300 +/- 5 mm

Aperture: F4.6

Typical Distortion: max <0.1%

C-mount

Recommended products for DTCM118-150-AL

IDS GV-5880CP-M-GL Rev.2.2 front sensor IDS GV-5880CP-M-GL IMX178LLJ-C

IDS GV-5880CP-M-GL Rev.2.2
Price on request
Datalogic Area scan Datalogic Area scan back view

Datalogic E182
Price on request

Alternate products for DTCM118-150-AL

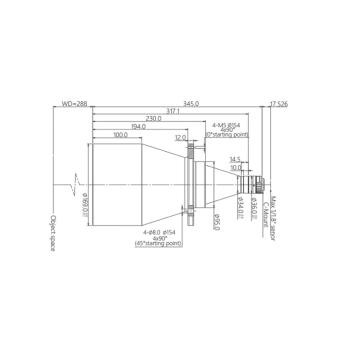

Coolens DTCM118-136 front view Coolens DTCM118-136 drawing
