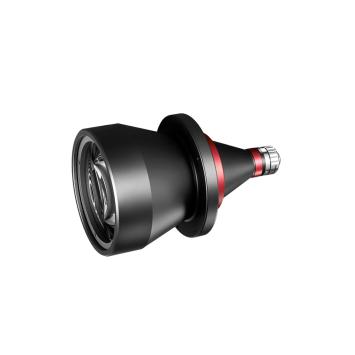

Coolens DTCM110-150 front view

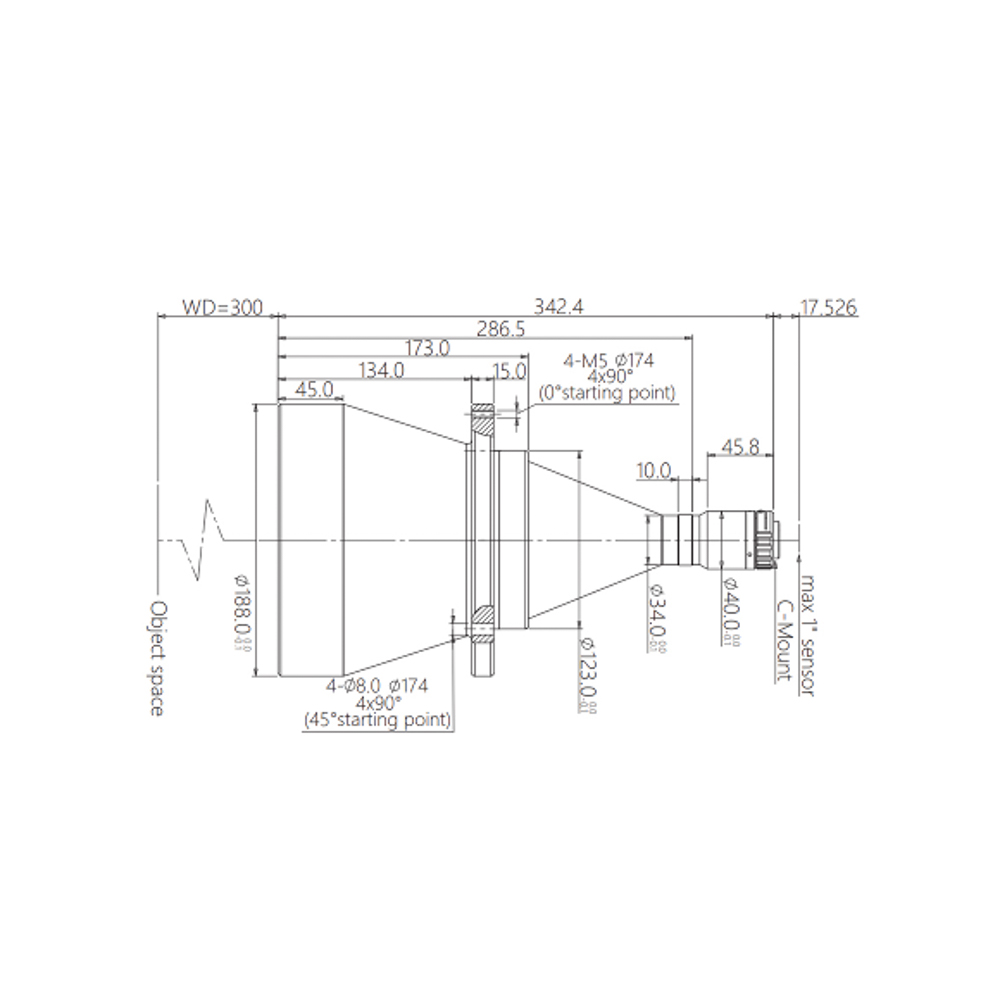

Coolens DTCM110-150 drawing
Coolens DTCM110-150 front view
Coolens DTCM110-150 drawing

DTCM110-150-AL

Item No.: 238.0098
Coolens

DTCM110-150-AL

Coolens DTCM110-150-AL - C-Mount Bi-Telecentric Lens

• FOV ⌀ 150mm, Ultra Resolution Bi-Telecentric Lens

• Up to 20 MegaPixels, 2.4 μm Pixel Size Sensors

• 1″ Bi-Telecentric Lens, C-Mount

• Magnification (x) 0.111

Also available in bigger FOV's:

  • DTCM110-170-AL - FOV ⌀ 170mm
  • DTCM110-190H-AL- FOV ⌀ 190mm
  • DTCM110-216-AL- FOV ⌀ 216mm
  • DTCM110-240H-AL- FOV ⌀ 240mm
  • DTCM110-258-AL- FOV ⌀ 258mm
  • DTCM110-300-AL- FOV ⌀ 300mm

Prices on request.

€2.529,00
(Price excluding VAT)
Request a quotation?
EAN
7435855547548
Brand
Coolens
FNO
F 6.5
Sensor Type
1 Inch
Mount
C-mount
Megapixel
20MP
Series
Telecentric
FOV
150 mm

Specification

FOV: 150 mm ⌀

Max Sensor Size: 16.6 mm (1")

Typical Telecntricity: <0.1

MTF30: >145 lp/mm

I/O length: 660 +/- 5 mm

Dept of Field: +/- 52.8 (@F16)

Length: 342.4 mm

Magnification: (x) 0.111

Working Distance: 300 +/- 5 mm

Aperture: F6.5

Typical Distortion: max <0.1%

C-mount
