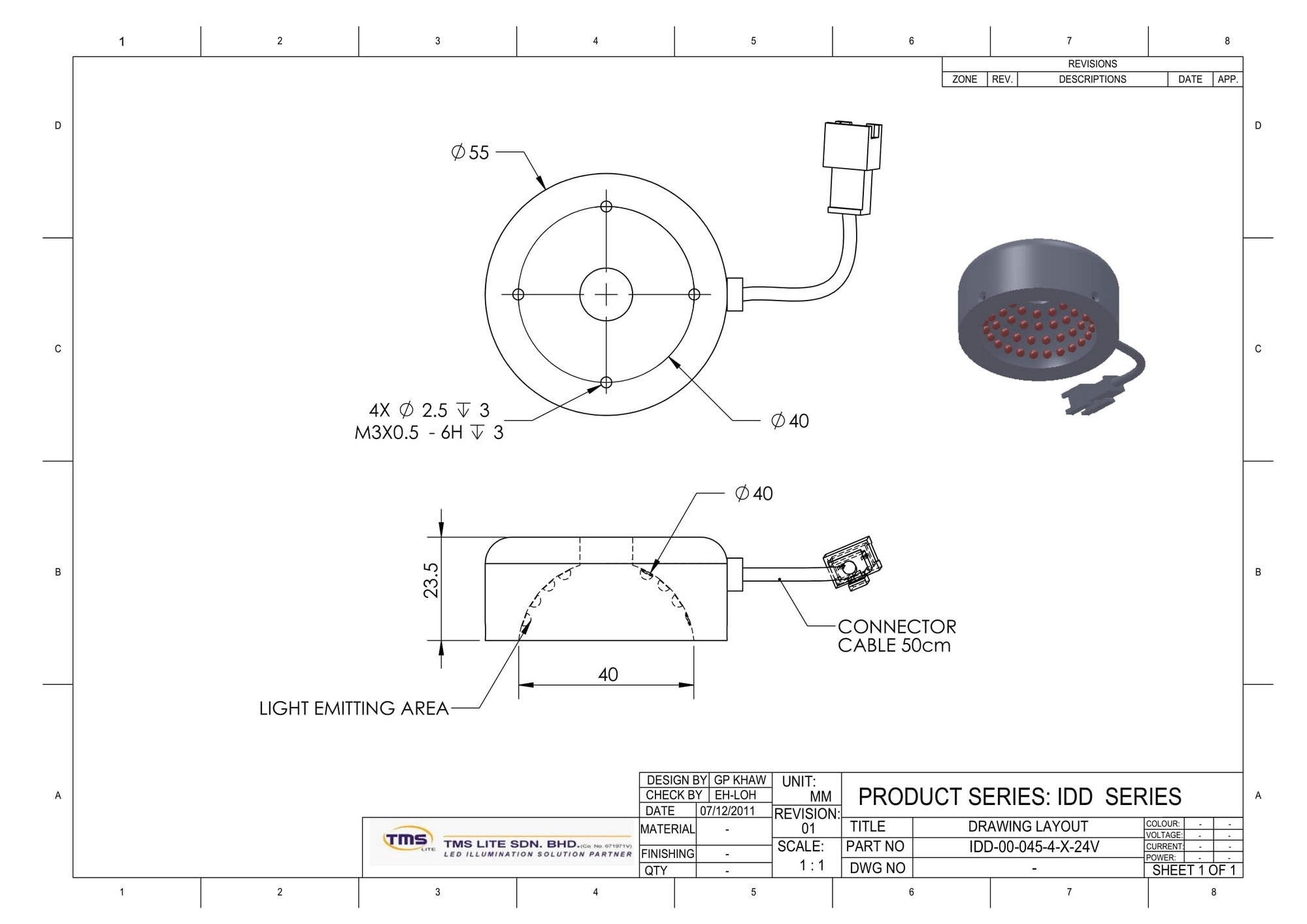

tekening IDD-00-045-4-R
schematische tekening lichtverdeling IDD-00-045-4-R
afbeelding zijkant IDD-00-045-4-R
bovenaanzicht IDD-00-045-4-R
foto binnenkant IDD-00-045-4-R
foto IDD-00-045-4-R
tekening IDD-00-045-4-R
schematische tekening lichtverdeling IDD-00-045-4-R
afbeelding zijkant IDD-00-045-4-R
bovenaanzicht IDD-00-045-4-R
foto binnenkant IDD-00-045-4-R

IDD-00-045-4-R-24V

Item No.: 167.0764
TMS Lite

Direct Illumination

IDD SERIES - Direct Dome Light Illumination

Multiple rows of LEDs are mounted inside a dome densely, allowing strong irradiation to be made by shining extreme bright light at whole angles.

Appliciation: SMD LED inspection, SMD resistor, crack and chip

Full technical specifications: Click here to download

€712,00
(Price excluding VAT)
Request a quotation?
EAN
7435852934914
Type of illumination
Direct
Shape
Dome
Angle
0
Colour
Red
Voltage Input
24V
Size
45
Brand
TMS Lite
Series
IDD

Specification

- Color Red

- Size 45mm

- Angle 0°

- Continuous and Strobe Applications

- Lighting Cable 500mm

Technical Information

24V DC Input Power

Voltage/Watt                  Current

24V / 2.88 W (Red)       120mA

LED 630 nm
