Item No.: DLF2-90-070-1-R-24V
TMS Lite

Diffused Illumination

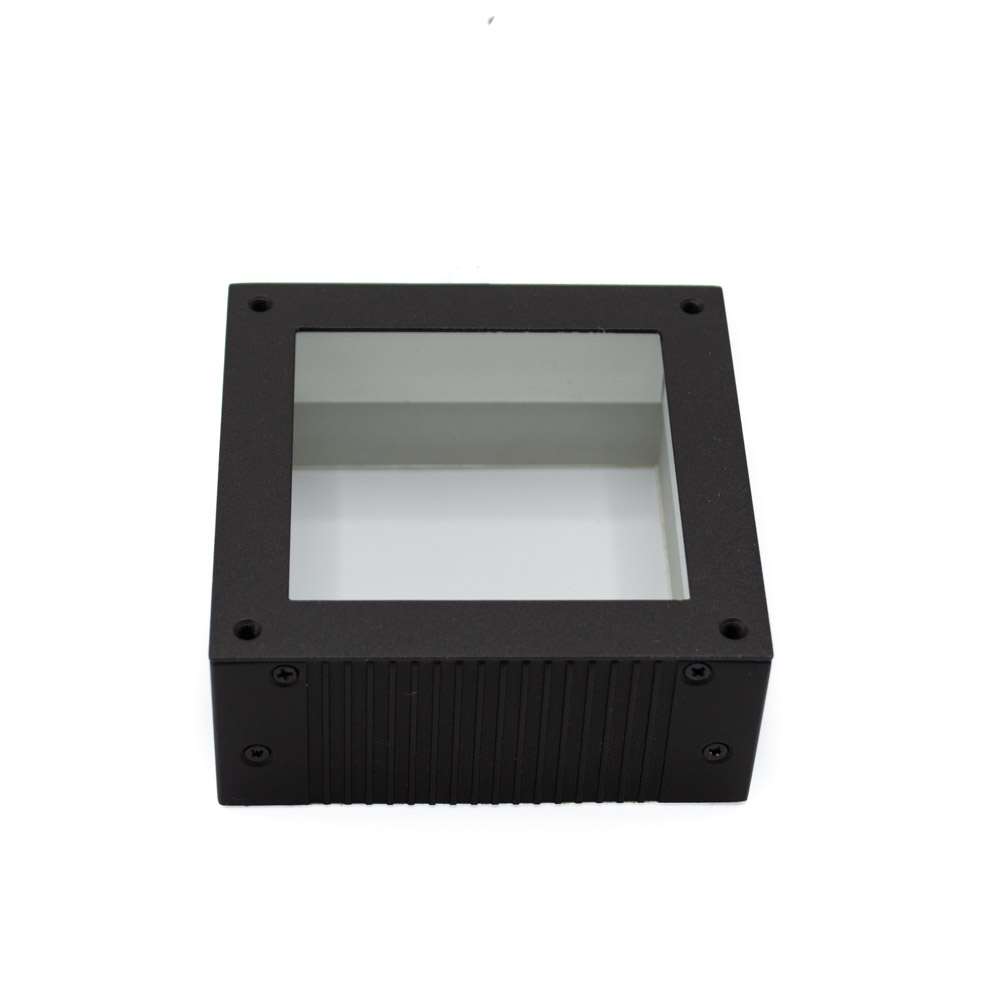

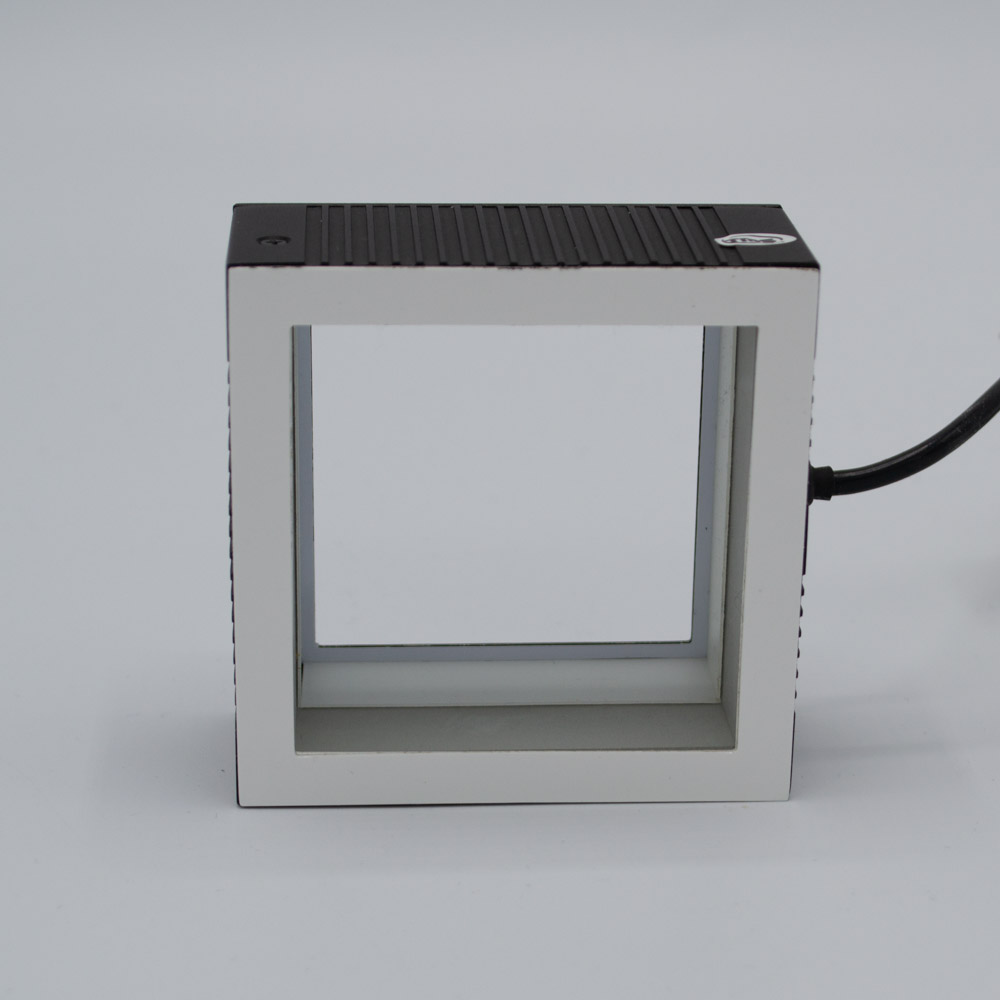

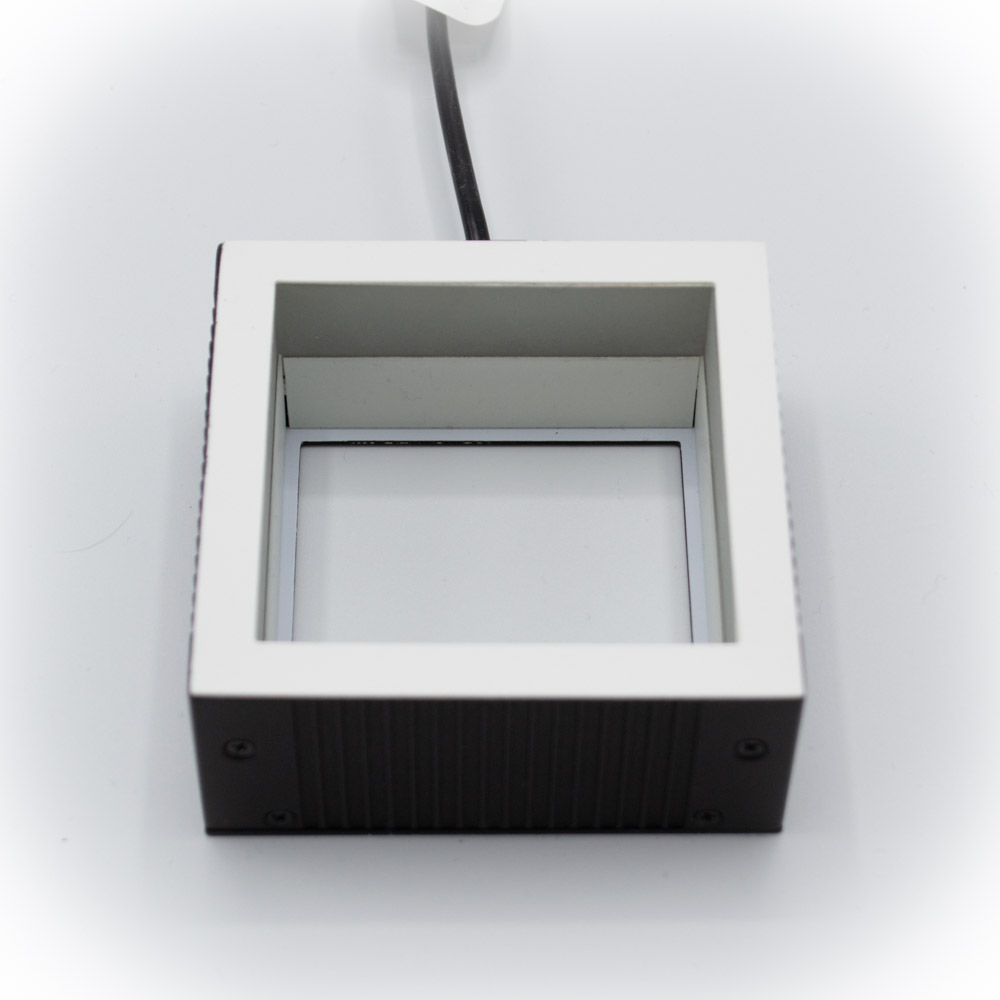

DLF SERIES - Diffused square illumination

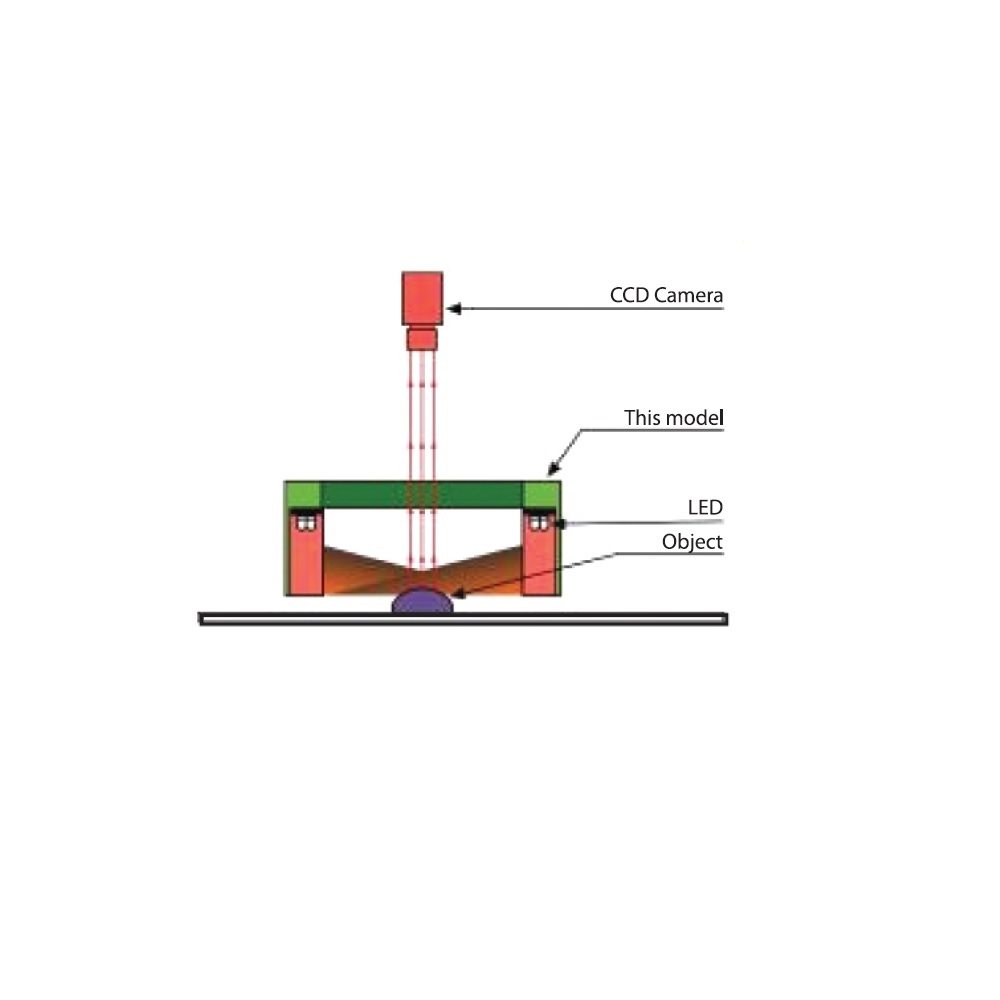

DLF series is a low angle diffused uniform illumination from 4 sides, highlighting the edges of the inspection object while not producing any unwanted shadows.

This illumination is suitable for the inspection of square or rectangular workpieces.

DLF series is different from the DLQ series because they can be used with a bigger FOV.

Applications: SDA ball inspection, QFP lead inspection

Full technical specifications: Click here to download

Extension cable

€401,00
(Price excluding VAT)
Request a quotation?
Type of illumination
Diffused
Shape
Square
Angle
90
Colour
Red
Voltage Input
24V
Size
70
Series
DLF

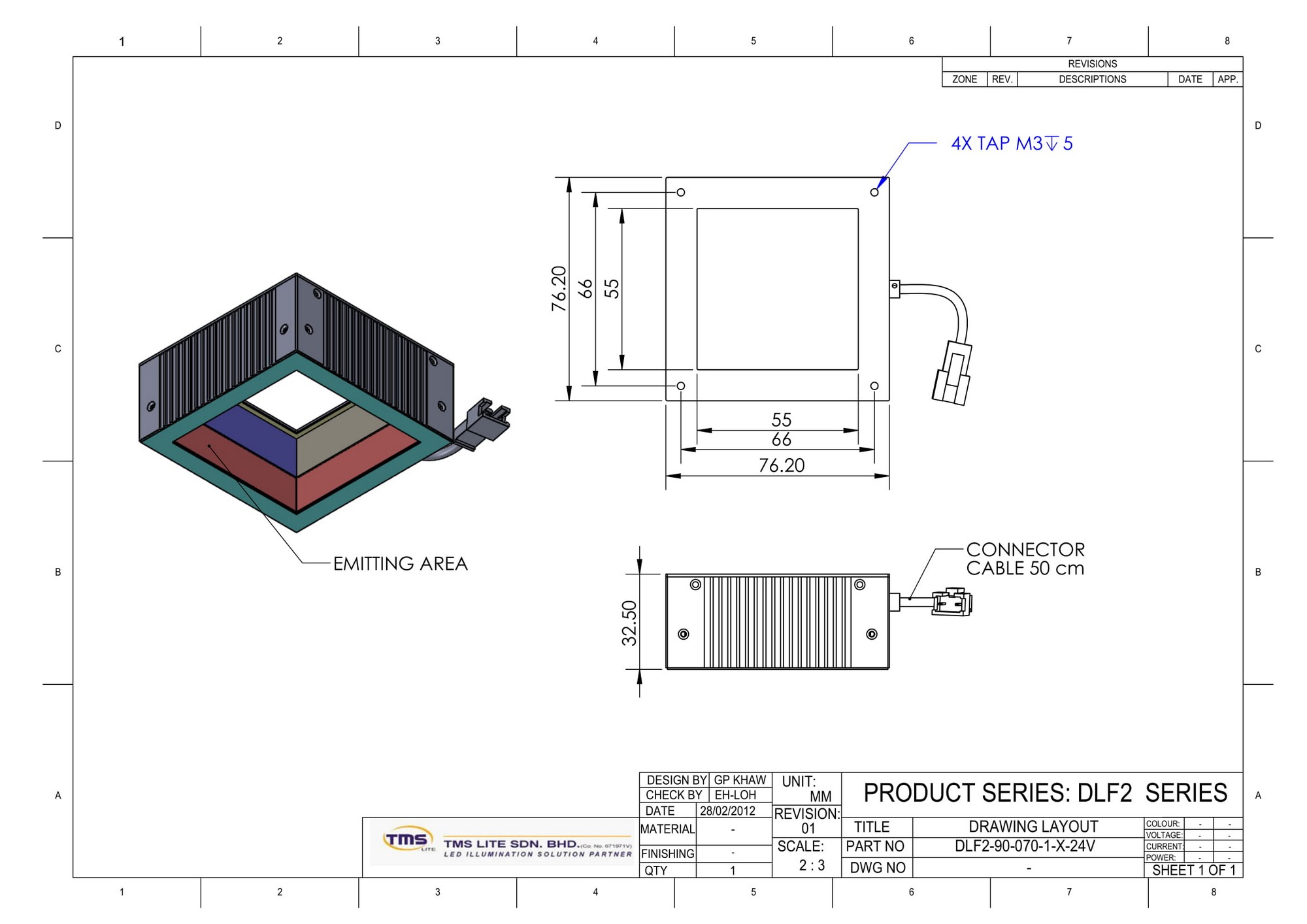

Specification

- Colour Red

- Length 70mm

- Angle 90°

- Continuous and Strobe Applications

- Lighting Cable 500mm

Technical Information

24V DC Input Power

Voltage/Watt                Current

24V / 2.88 W (Red)     120mA

LED 630 nm
