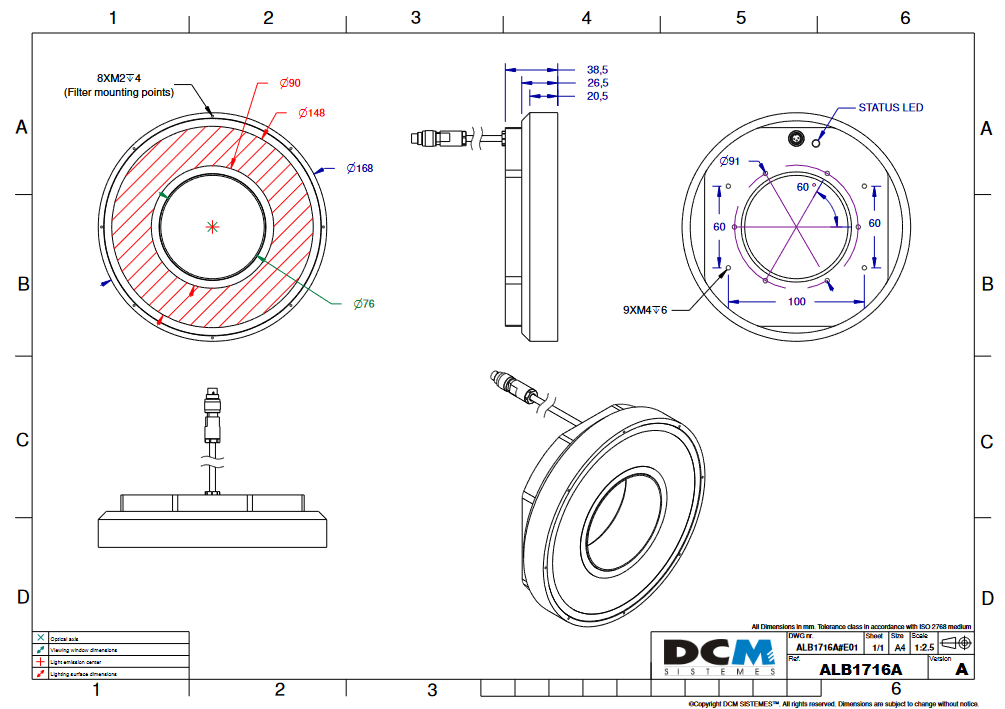

DCM ALB1716A drawing
DCM ALB1716A front view
DCM ALB1716A drawing

DCM ALB1716A-525C/AW

Item No.: 230.0088
DCM sistemes

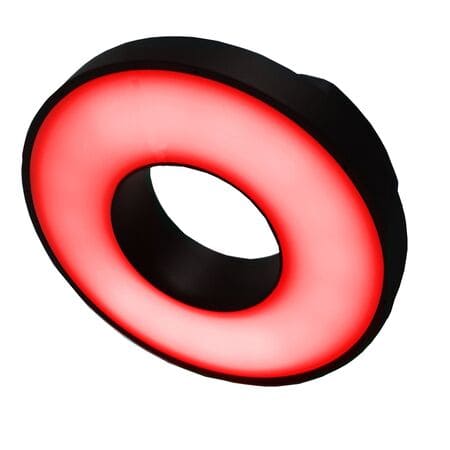

DCM ALB1716A-525C/AW, Direct Ring Illumination

DCM ALB1716A-525C/AW - High-powered ring light

The ALB series lights provide a great amount of light which makes them suitable for lighting objects from large distance, they highlight textures and contours.

The ALB ring light is available in several angles (0°,18°, 21° en 40°) of emission and we offer various suplementary filters (polarizer, diffuser, antiglare) to be even more versatile.

Full technical specifications: Click here to download

Manufactured in Europe

€918,00
(Price excluding VAT)
Request a quotation?
EAN
7435854491408
Type of illumination
Direct
Shape
Ring
Angle
70
Colour
Green
Voltage Input
24V
IP
65
Size
76
Brand
DCM sistemes
Series
ALB

Specification

- Colour Green

- Size 76mm

- Angle 70°

- Continuous and Strobe Applications

- 3P  Cable 150mm

Technical information

24V DC Input Power

Voltage/Watt

24V / 20 W (Green)

525nm

Recommended products for DCM ALB1716A-525C/AW

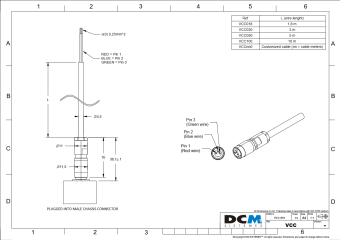

VCC Drawing
