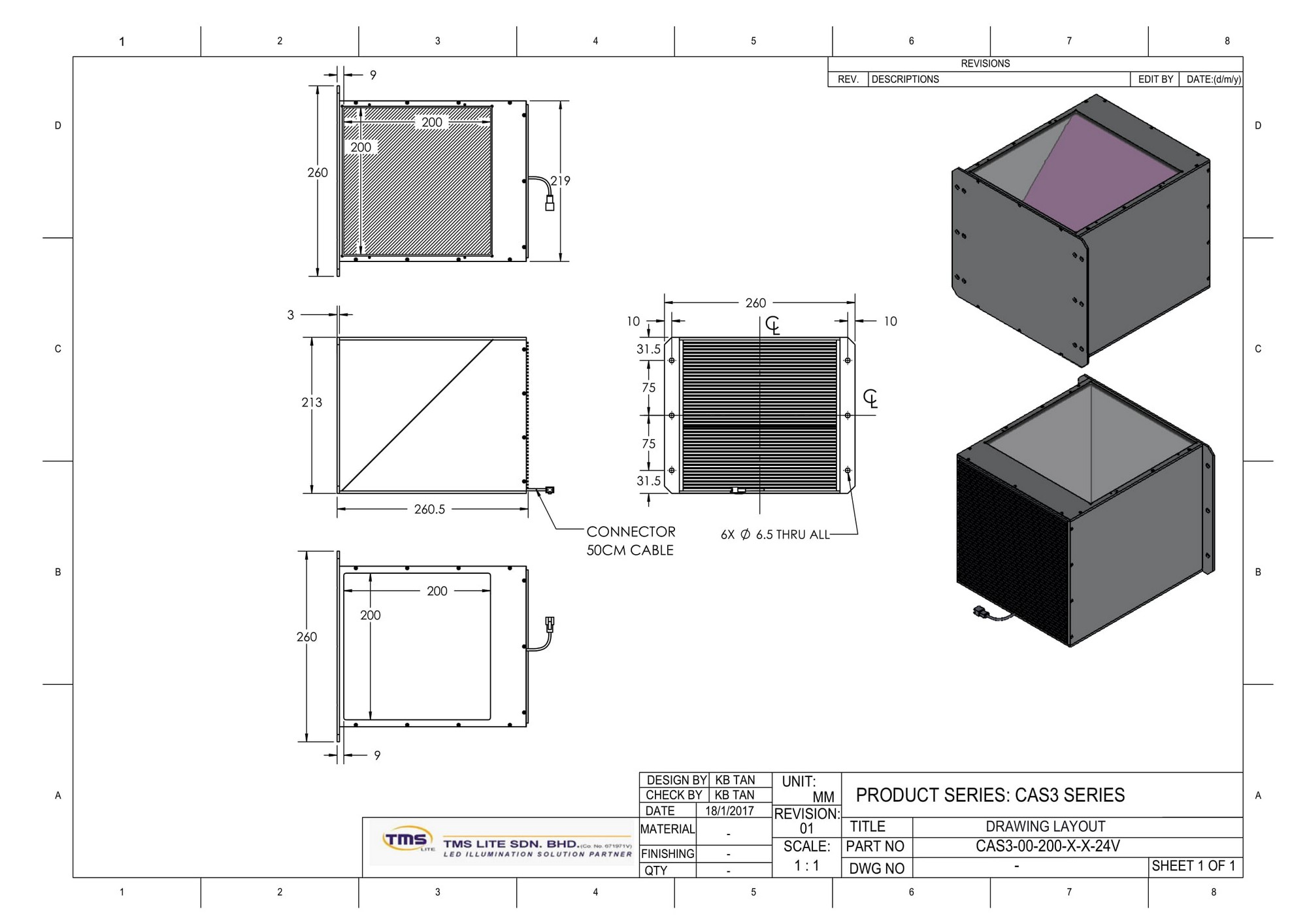

CAS3-00-200-X-W-24V

Coaxial Illumination

CAS SERIES - Uniform high power coaxial light

The light projected from the light source is reflected by 45° half mirror to provide light in line with the camera. The half mirror will be shipped separately due to it's size and requires self-assembly.

Applications: surface inspection and alignment, wafer, metal surface, film, LCD and glass, pattern on PCB

Full technical specifications: Click here to download
